Ultrasonic and spray cleaning technology rotation smt squeegee cleaning machine for all solder paste printing machine

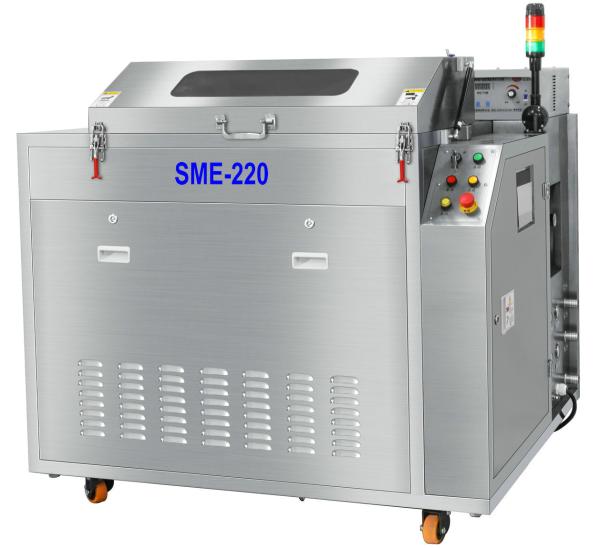

SME-220 is a SUS304 stainless steel, silver color, rotation squeegee cleaning machine. It can clean 6 squeegees at one time and all solder paste squeegees like MPM, DEK, ERKA,GKG, DESON... liquid clean, water rinse and hot air toast dry process, spray and ultrasonic cleaning technology combination make squeegees very clean, even corner and claws.

SME-220 clean process: lqiuid wash, water rinse, hot air blow dry.

SME-220 one key easy operation, auto running.
1.Ultrasonic clean+Spray very good cleaning result, especailly gaps and corners of squeegees.
2.Rotation cleaning, 6 pcs of squeegees one time.
3.Squeegees are easy and convienent to laod

Machine Features:

1. Special designed to clean solder paste ,flux and other organic and inorganic contaminations on Squeegees .

2. Ultrasonic and spray clean at the same time to clean all the solder paste off from the squeegees.

3. Clean,rinse,dry process, thoroughly clean, standby and ready to use at any time.

4. 6 squeegee racks : can clean 6 600mm squeegees in one time.

5. State of the process is visible through a large observation window.

6. Clean detergent heat system heat cleaning detergent to a certain temp, raise cleaning efficiency and reduce clean time.

7. Easy operation interface, quick setting clean parameters. Different passwords can be set.

8. Inner filter makes detergent used repeated.

9. Totally SUS304 structure, very firm and attractive.

Machine SPEC:

Customer Questions and Answers:

Q1: How many squeegees can SME-220 clean at one time?

A1: 600mm length squeegees, 6 pcs; 254mm length squeegees, 12 pcs.

Q2: How SME-220 can complex squeegees clean?

A2: SME-220 use ultrasonic cleaning and spray cleaning technology.

Q3: What is cycle time of SME-220?

A3: about 20 minutes.

Comparison pictures before and after cleaning:

  SME staff insist on research and develop high quality and smart cleaning equipments for electronic industry.

  In SMT cleaning feild: we have installed stencil cleaning machines, nozzle cleaning machines, misprinted PCB cleaning machines,

squeegee cleaning machines and solder wave oven fixture cleaning, reflow oven cooler cleaning machines, PCBA offline cleaning machines

and PCBA in line cleaning machine, PCB inline cleaning machine.

In screen cleaning feild: we have installed Screen cleaning machine, screen developping and stripping machine, ink squeegee cleaning

machine.

  In semiconductor field: we have BGA water cleaing machine, IPM,SIP, FC,PLP,WLP, 3D package cleaning machine, Cassette ultrasoinc cleaning machine,widely used in SMT, PCB, TP, Semiconductor, solar, photovoltaic and other industires.

  With the tenet of “Quality, professionalism, innovation and service”, SME aims to develop and expand intelligent precision cleaning and

cleaning equipment. We look forward to cooperating with you for a better tomorrow.
