    Liquid Wash And Water Rinse Ultrasonic+Spray Cleaning Machine For red glue Sgueegees

    Ask Lasest Price
    Certification : CE,UL
    Supply Ability : 200 sets per year
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Brand Name : SHENHUA
    Model Number : SME-220
    Delivery Time : 30~40 days
    • Product Details
    • Company Profile

    Liquid Wash And Water Rinse Ultrasonic+Spray Cleaning Machine For red glue Sgueegees

    Product Description:

    SME-230 is a red glue printing squeegee automatic cleaning machine for screen printer. It is an off-line, compact, energy-saving , batch cleaning, screen squeegee cleaning machine. all kinds of screen printing material red glue, silver paste, glue... can be throughly cleaned by SME-230. It is an automatic running machine; wash, rinse, dry process in one chamber by just push" start" key. Inks residual was kept in filter barrel and cleaning tank.

    Machine Features:
    1. Special designed to clean printing ink, silver paste,glue...etc on screen squeegees .
    2. Ultrasonic and spray clean at the same time to clean all the leftovers off from the squeegees.
    3. Clean,rinse,dry process, thoroughly clean, standby and ready to use at any time.
    4. 6 squeegee racks : can clean 4 pcs of 900mm squeegees in one time.
    5. State of the process is visible through a large observation window.
    6. Clean liquid heat system heat liquid to a certain temp, raise clean efficiency and reduce clean time.
    7. Easy operation interface, quick setting clean parameters. Different passwords can be set.
    8. Inner filter makes liquid used repeated. .
    9. Totally SUS304 structure, very firm and attractive.

    Machine Spec:
    ItemSME-230 Spec
    Squeegee numbers6 pcs of 600mm squeegees one time, 12 pcs of 254mm one time
    clean lqiuid tank capacity100L
    rinse water tank capacity100L
    Clean time5~10min
    Rinse time1~2min
    Dry time5~15min
    cleaning liquid heat tempRT~60ºC
    Dry tempRT~99ºC
    water tempRT~60ºC
    Cleaning liquid filter1um
    Rinse water filter1um
    clean/ rinse pump1.1KW
    ultrasonic power1.7KW
    Power/air supplyAC380V/50A/50HZ,30KW;0.5Mpa
    Machine sizeL1700 x W1400 x H1300(mm)
    Machine weight600KG

    Customer Questions and Answers:


    Q1: How many squeegees can SME-230 clean at one time?

    A1: 6 pcs 600mm length squeegees; 254mm length squeegees, 12 pcs.


    Q2: How SME-230 can complex squeegees clean?

    A2: SME-230 use ultrasonic cleaning and spray cleaning technology.


    Q3: What is cycle time of SME-230?

    A3: about 16 minutes.

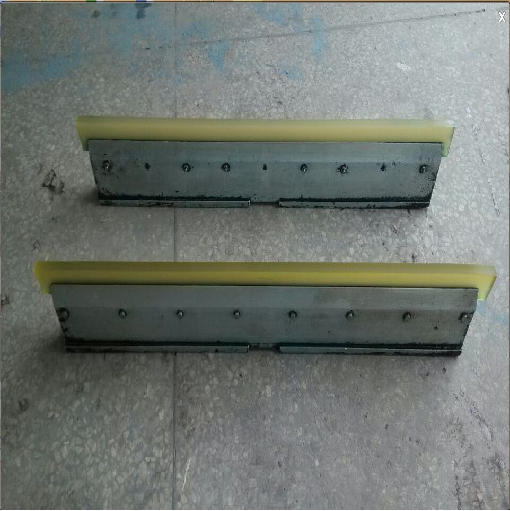

    Comparison pictures before and after cleaning:
