    Conformal coating automatic and pneumatic removing spray cleaning machine for conformal pallets

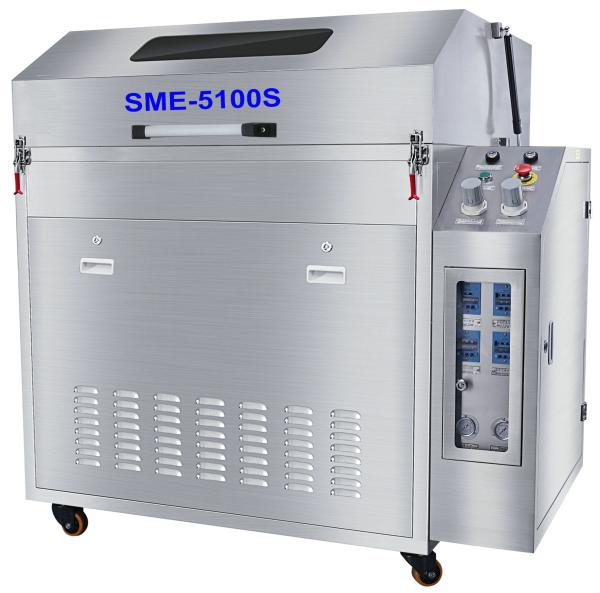

    SME-5100S Conformal coating automatic and pneumatic removing spray cleaning machine for conformal pallets.
    SME-5100S is used to conformal coating on conformal coating pallet. It is a pneumatic spray cleaning machine, not use electric power, so conformal coating solvent can be used in this machine.


    SME-5100S adopts solvent wash+solvent clean+compressed air blow dry process.


    Pneumatic control, east operation and maintenance.

    Machine Features:

    1. Pneumatic control, never use electric power at all, absolutely clean safe.
    2. SUS 304 machine structure, resist Acid and Alkali corrosion, firm and attractive.
    3. One-button easy operation, high pressure clean+ high pressure rinse+ compressed air dry, all process complete in one time automatically.
    4. Closed-loop clean and rinse, clean solvent and rinse solvent is filtered in the machine
    5. Solvent recycled to use and cost down.
    6. Both solvent and aqueous detergent can be used.
    7. The pallet are clean and dry after cleaning, standby and ready for use.
    8. Standard equipped with auto fill-in and drain-out function.
    9. Inner lock safety design, once door open, the machine stops immediately.

    Machine Spec:

    ItemSME-5100S
    Cleaning basket sizeΦ1000 x H 200(mm)
    Clean spray unitUpper/Lower/front side, all-round spray, basket rotate
    2-level filter1mm/20um filter
    Clean time5~15 Min
    Rinse time1~2 Min
    Air dry time5~10min
    Clean tank capacity80L
    Rinse tank capacity80L
    Clean spray pressure2~4kg/cm2
    Air supply0.5~0.7Mpa,800~1000L/min
    Machine sizeL1450 x W1550 x H 1400 (mm)
    Machine weight520KG

    Customer questions and Answers:

    Q1: Is SME-5100S safe?

    A1: Yes, SME-5100 do not use electric power, only compressed-air, so no risk of electricity, heat, sparks.


    Q2: How SME-5100S clean products?

    A2: The products put on round basket, the upper and lower spray rods spray solvent while basket turns at low speed.


    Cleaning comparison pictures beofre and after cleaning:
