SME-820 Solder Paste Printing Stencil Mini LED Stencil, Thin Smt Stencil Cleaning Machine.

Automatic SMT stencil washer machine for solder paste printed stencil and red glue printed cooper stencil is an aqueous liquid stencil cleaning machine. SME-820 uses aqueous liquid to clean, DI water or DM water to rinse, hot air blow dry; Liquid and water can add and discharge automatically.

SME-820 MULTI-application: solder paste stencil, red glue stencil, red glue cooper stencil, red glue plastic stencil, mis-printed PCB and squeegees.

SME-820 cleaning process: water-based liquid wash--DI water rinse--hot air blow dry.

SME-820 has the stable mechanism structure--4 cleaning spray rods and 4 air knives fixed at the left and right side of stencil; stencil move back and forth in the cleaning cabinet..

Machine Features:

1. All kinds of SMT solder paste stencil, red glue cooper stencil/ plastic stencil, misprint PCB and squeegees.
2. 4 spray rods and 4 air knives fixed while stencil moves back and forth , relaible and stable mechanism.
3. Independent wash and rinse system .
4. Machine process is visible through a large observation window.
5. Real-time liquid and DI water filter system.
6. Compressed air blow out remain liquid in pipes and pump. This function saves liquid.
7. SUS304 stainless steel material, acid and alklic corrision protection .
8. PLC control and TP English operation interface.

9. Liquid temperature, liquid wash time ,DI water rinse time ,DI water temperature, hot air dry time and temperature can be set and modified.

10. Liquid and DI water auto add and discharge fuction.

11. Liquid and DI water filter timely repalce alarm function.

12. World famous Schneider,Mitsubishi, SMC, CKD, Omron electric and pueumatic parts.

Machine Spec:

Questions and Answers:

Q1. Why choose this electric stencil cleaning machine?

A1: Because SME-820 use water-based liquid which is safety, environmental-protection and easy to rinse.

Q2: Can SME-820 clean 3mm thick red glue printed cooper stencil and palstic mask?

A2: Yes, it can because its powerful cleaning pressure can penatrate very little holes in the stencil and mask to wash the red glue out.

Q3: Is it very dry after wash, rinse and dry process?

A3: Yes, it is very dry because hot air temperture and air blow result.

Q3: How SME-820 clean mis-printed PCB, squeegees and frameless stencils?

A4: By using our mis-printed PCB fixture, squeegee fixture, frameless stencil fixture.

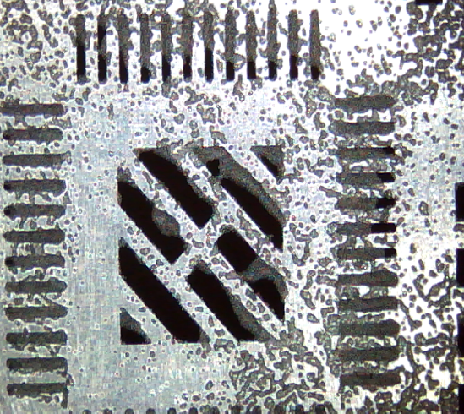

Comparisonpictures before and after cleaning:
