Stainless Steel Pallet Flux Wash Machine For SMT And Semi Conductor
Packaging Vacuum Reflow Oven.
SME-5200 SUS304 stainless steel material reflow oven pallet and
cooler cleaning machine for BTU and SMT reflow oven is a 1000mm
diameter basket automatic cleaning machine. Coolers of Lead-free
Ersa and Rehm reflow oven can be cleaned in this machine very
easily.
PLC control, TP operation. SME-5200 is consist of wash unit, rinse
unit, dry unit, filter unit and electric control unit. Liqui clean,
tap water rinse, hot air blow dry process are automatic conducted
one by one accorind to setting programe.
Machine process:
Put the dirt coolers into the cleaning basket, setting the cleaning
parameters, the machine will automatically complete wash, rinse and
dry process by just pushing start key. The coolers are clean and
dry after cleaning and ready for use.
Machine features:
1.Total SUS 304 structure, resist Acid and Alkali corrosion, firm
and attractive.
2. φ1000mm diameter big cleaning round basket, can clean 20~40 pcs
fixtures at one time.
3. Clean liquid spray from 3 spray rods on upper/lower and front
side, cleaning basket rotates during cleaning.
4. Clean liquid pressure up to 6kg/cm2, make it throughly clean of
whole fixture.
5. PLC program control, Touch-panel operation,cleaning parameters
can be set and change conveniently.
6. Easy One-button operation, high pressure clean+ rinse+ hot air
dry, all process complete in a cycle automatically.
7. Clean liquid and water heat and temperature keeping function.
8. Closed-loop clean and rinse, clean detergent and rinse water are
cycling filtered and reused in the machine.
9. Standard equipped solution and water auto fill in and discharge
function.
10.The fixtures are clean and dry after cleaning, standby and ready
for use at any time.
Machine spec:
| Item | SME-5200 Spec |
| Cleaning basket size | Φ1000mm x H 200mm. Clean height 450mm |
| Spray unit | Upper/lower/front side,720°, all-around spray |
| 3-level filter system | 2mm /100um/20um filters |
| Clean tank capacity | 80L |
| Rinse tank capacity | 80L |
| Clean spray pressure | 5~6 kg/cm2 |
| Clean time | 5~15 Min |
| Rinse time | 1~3 Min |
| Dry time | 10~20Min |
| Clean liquid heat temp | Room temp~80℃ |
| Rinse water heat temp | Room temp~80℃ |
| Hot air heat temp | Room temp~90℃ |
| Clean/Rinse pump power | 2.2KW/1.1kw |
| Liquid/Water heaater power | 9KW |
| Hot air heat power | 9KW |
| Air blower power | 4.0KW |
| Air supply | 0.5~0.7Mpa |
| Power supply | 3 P,AC 380V,50/60HZ,33KW |
| Machine size | L1400 x W2000 x H 1450 (mm) |
| Machine weight | 600KG |
Question and Answers:
Q1: Can SME-5200 clean coolers and fixture?
A1: Yes, it can.
Q2: How many fixtures can SME-5200 clean one time?
A2: It depends on pallet size. for Rehm, it can clean 4 in one
time, for Ersa, it can clean 1or 2 in one time.
Q3: What is cycle time of SME-5200?
A3: It is about 40~45 miutes, including wash,rinse and hot air blow
dry time.
Q4: Does the round basket turns with setting speed?
A4: Yes, the 1000mm diamater round basket turns at the speed of
15~20RPM

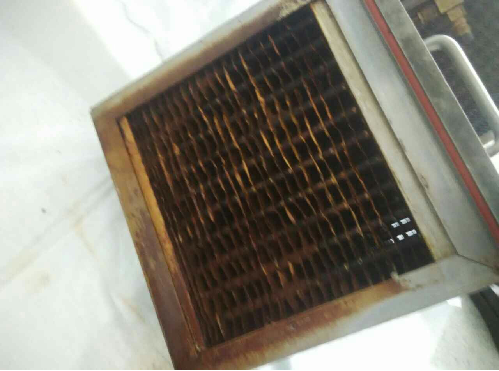

Comparison pictures before and after cleaing:
